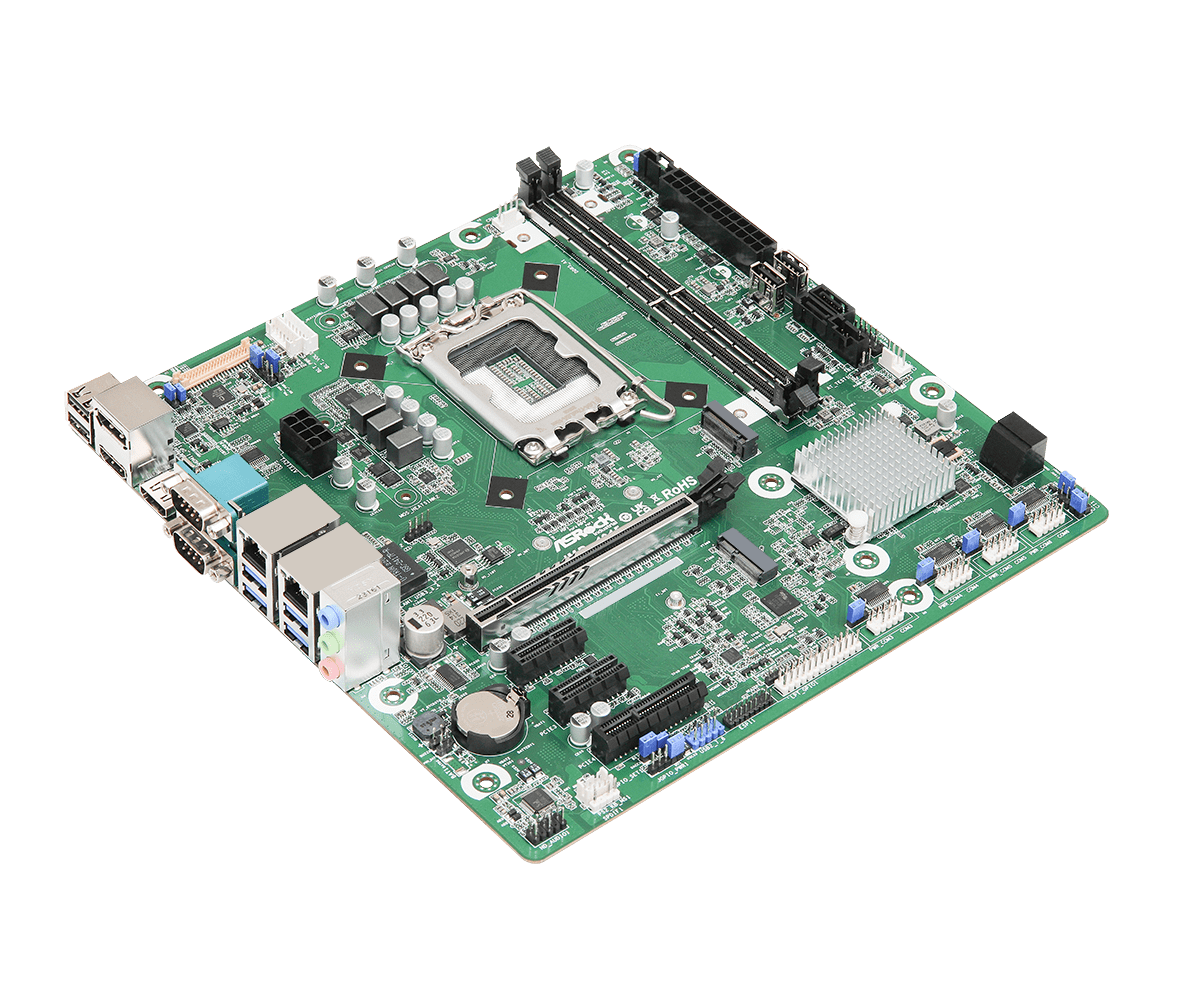

IMB-1315
- Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core Processors with H610 chipset
- 2 x 288-pin Long-DIMM DDR5 4800/5600 MHz, up to 96GB (48 GB per DIMM)
- 1 x PCIe x16 (Gen5), 1 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 4 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports Triple display, 1 x HDMI 2.0b, 1 x HDMI 1.4b, 1 x DP 1.4a, 1 x LVDS or eDP
- TPM 2.0 onboard IC
- ATX PWR (8+24 Pin)
Processor System
| CPU | Intel 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core Processors, up to 65W |
|---|---|
| Chipset | Intel H610 |
| Socket | LGA 1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Micro-ATX (9.6-in x 9.6-in x 1.56-in, 24.4 cm x 24.4 cm x 3.97 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 4800/5600 MHz* * Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ. |
|---|---|
| Capacity | 96GB (48GB per DIMM) |
| Socket | 2 x 288-pin Long-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 1.4b: Max resolution up to 4096 x 2160@30Hz HDMI 2.0b: Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen5) 1 x PCIe x4 (Gen3) 2 x PCIe x1 (Gen3) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with CNVi for Wireless |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I210AT with 10/100/1000 Mbps (Optional: supports PoE) LAN2: Intel I219V with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

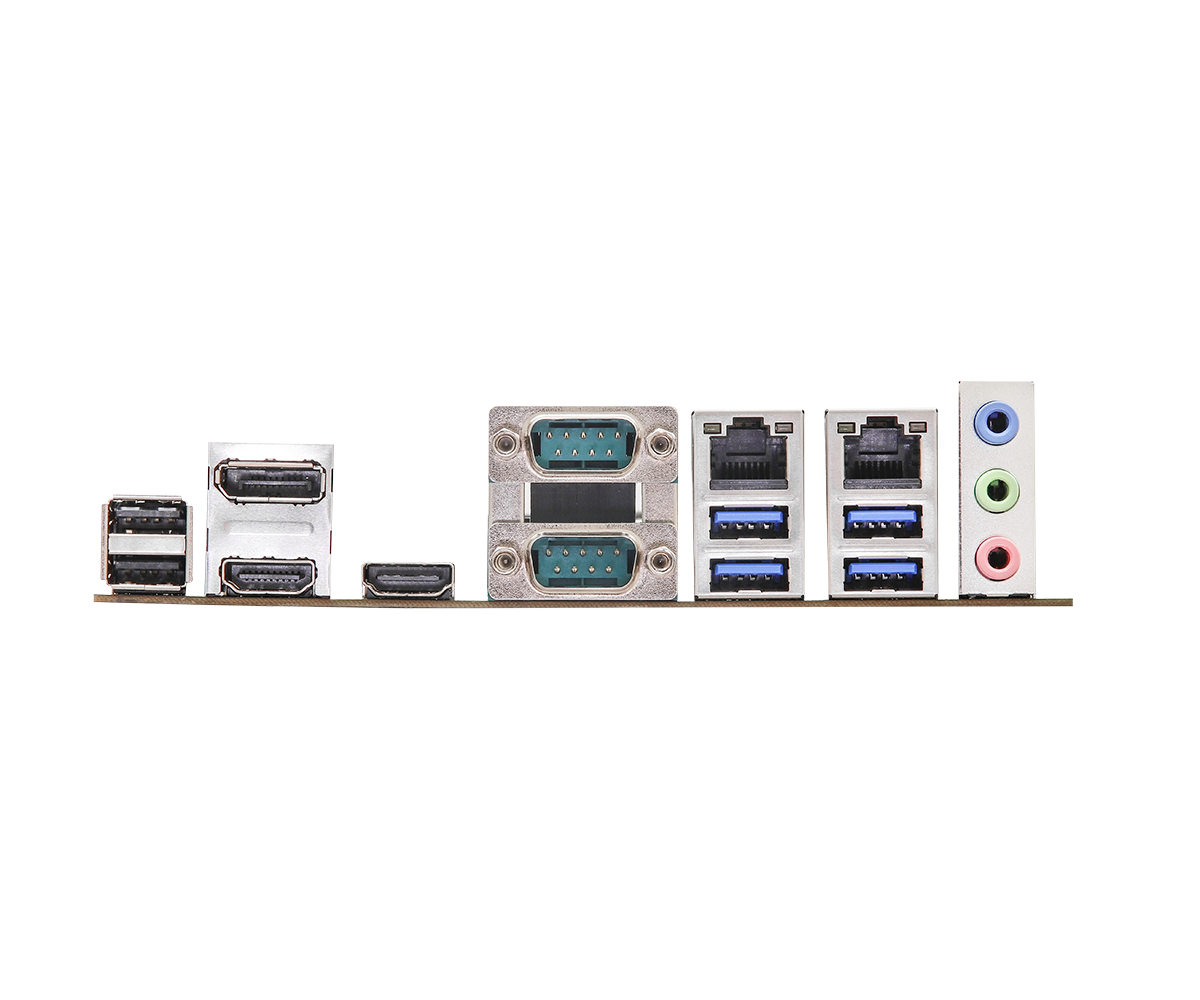

Rear I/O
| HDMI | 1 x HDMI 2.0b 1 x HDMI 1.4b |
|---|---|
| DisplayPort | 1 x DP++ |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.2 Gen1 2 x USB 2.0 |
| Audio | 3 (Line-In/Line-Out/Mic-In) |
| Serial Port | COM1 (RS-232/422/485), COM2 (RS-232) |
Internal Connector
| USB | 4 x USB 2.0 (1 x 2.54 pitch header, 2 x USB 2.0 Type-A vertical con) |
|---|---|
| COM | COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| Speaker Header | 1 |
| PS/2 | 1 x PS/2 header |
| Thunderbolt header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen3 x1 for SSD |
|---|---|
| SATA | 4 x SATA3 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20deg C ~ 70deg C |
|---|---|
| Storage Temp | -40deg C ~ 85deg C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P028010AK) 2 x SCREW M2*2,D=5 (13G020302031AK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G02P028010AK) 2 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
