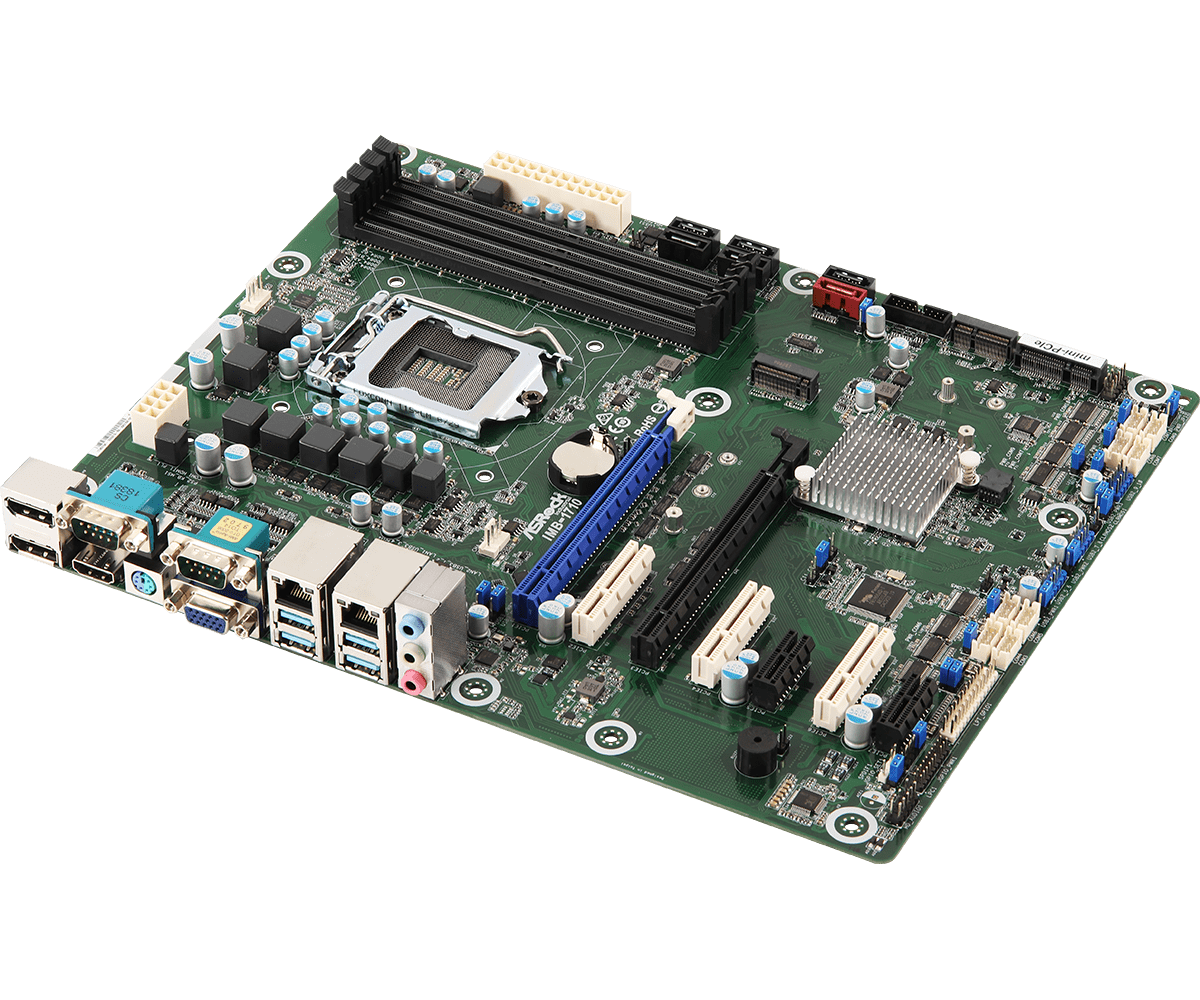

IMB-1710
- Intel 9th/ 8th Gen (Coffee Lake-S) Core Processors with Q370 chipset
- 4 x 288-pin Long-DIMM up to 128GB* DDR4 2666 MHz
- 1 x PCIe x16 (Gen3), 1 x PCIe x8 (Gen3), 3 x PCIe x4 (Gen3), 2 x PCIe x1 (Gen3), 6 x USB 3.1 Gen1, 6 x USB 2.0, 1 x M.2 Key E, 1 x mini-PCIe, 1 x M.2 Key M, 10 x COM, 6 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports triple display, 1 x HDMI 1.4, 2 x DP 1.2, 1 x VGA
- TPM 2.0 onboard IC
- Supports Intel vPro, AMT, RAID 0/1/5/10
- ATX PWR
Processor System
| CPU | Intel 9th/ 8th Gen (Co?ee Lake-S) Core Processors, up to 95W |
|---|---|
| Chipset | Intel Q370 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2666 MHz |
|---|---|
| Capacity | 128GB* * Intel Core i9/i7/i5 CPUs support up to 128GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 64GB (16GB per DIMM)) |
| Socket | 4 x 288-pin Long-DIMM |
Graphics
| Controller | Co?ee Lake integrated graphics |
|---|---|
| HDMI | HDMI 1.4 Max resolution up to 4096x2160@24Hz |
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2304@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 3 x PCIE 3.0 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x4 (PCIE2) / x4 (PCIE3) ) 2 x PCIE 3.0 x4 Slots (PCIE4) (PCIE6) 2 x PCIE 3.0 x1 Slots (PCIE5) (PCIE7) |
|---|---|
| mini-PCIe | 1 x Full/Half size with PCIe x1 and USB 2.0 |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface | Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I210 with 10/100/1000 Mbps LAN2: Intel I219LM with 10/100/1000 Mbps, supports AMT/vPro |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 1 x HDMI 1.4 |
|---|---|
| DisplayPort | 2 x DP 1.2 |
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
| Audio | 3 (Mic-in, Line-in, Line-out) |
| COM | COM1, 2(RS-232/422/485) |
| PS2 | 1 x PS/2 combo |
Internal Connector
| USB | 2 x USB 3.1 Gen1 (1 x USB 3.1 header) 6 x USB 2.0 (3 x 2.54 pitch header) |
|---|---|
| COM | 8x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | TPM 2.0 onboard IC |
| LVDS | N/A |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and shared SATA3 for SSD |
|---|---|
| SATA | 6 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M |
| RAID | Intel SATA RAID 0/1/5/10 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 segments, 0,1,2�255sec/min |
Power Requirements
| Input PWR | ATX PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0degC ~ 60degC |
|---|---|
| Storage Temp | -40deg C � 85deg C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 1 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020505000AK) 2 x SATA Data Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 1 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020505000AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
