Processor System
| CPU |
Supports Intel 7th / 6th Gen (Kabylake-S / Skylake-S) Core
Processors (Socket 1151) |
| Chipset |
Intel Q170 |
Form Factor
| Dimensions |
Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
Memory
| Technology |
Dual Channel DDR4 2133 MHz |
| Capacity |
32 GB |
| Socket |
2 x SO-DIMM |
Graphics
| Controller |
Intel Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4 |
| HDMI |
HDMI1: Supports max resolution 4096 x 2160@60Hz
HDMI2 & 3: Supports max resolution 4096 x 2160@30Hz |
| VGA |
Supports max resolution up to 1920 x 1200 |
| LVDS |
Supports Dual channel 24-bit co-lay with eDP, max resolution up to 1920 x 1200@60Hz |
| MultiDisplay |
Triple Display |
Expansion Slot
| PCIe |
1 x PCIe x4 |
| mini-PCIe |
1 x Half size with PCIe x1 and USB 2.0 |
| mini-PCIe/mSATA |
1 x Full size with PCIe x1, SATA3 and USB 2.0 |
Audio
| Interface |
Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in |
Ethernet
| Controller/ Speed |
LAN1: Intel I219LM with 10/100/1000 Mbps
LAN2: Intel I210 with 10/100/1000Mbps |

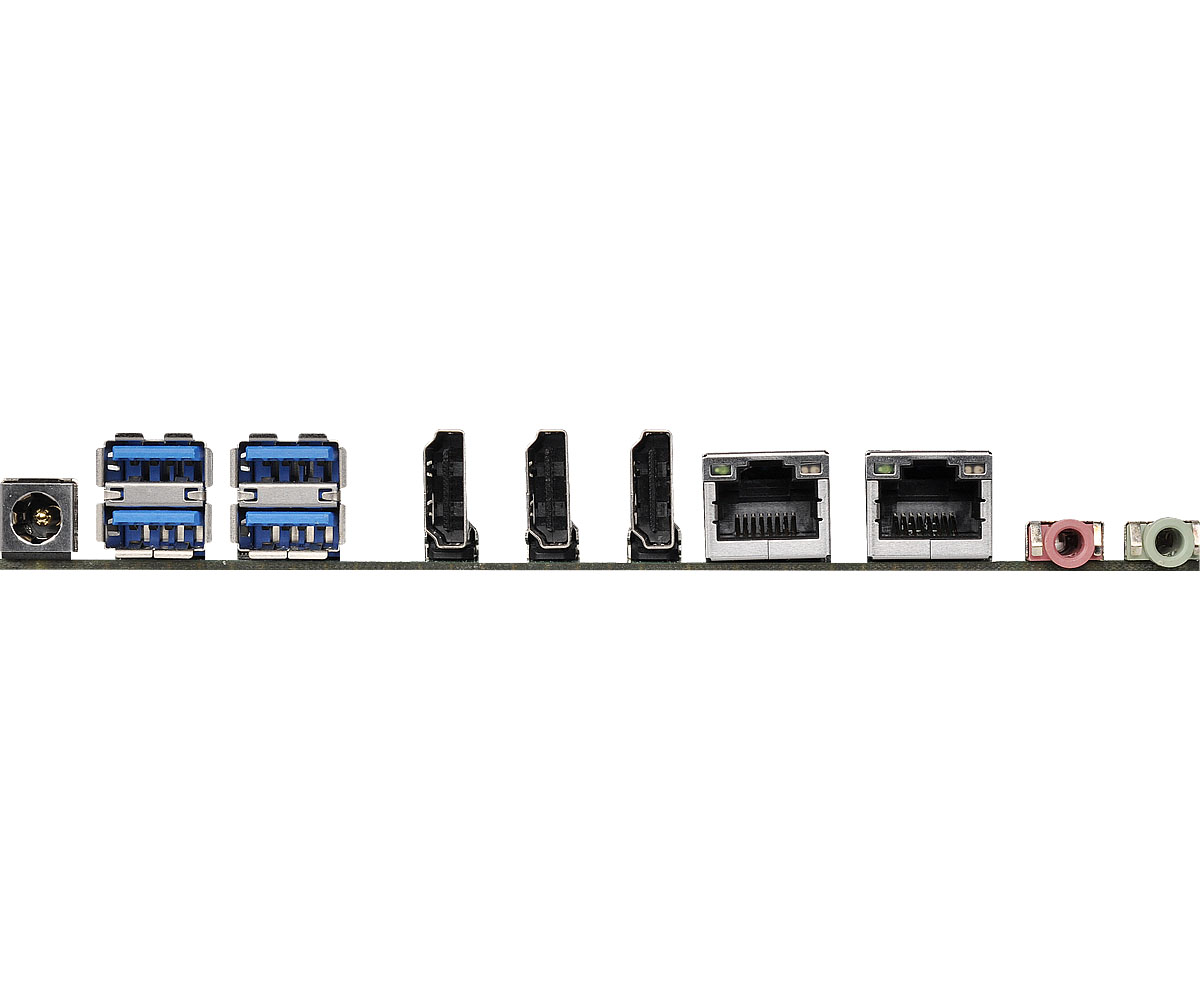

Rear I/O
| HDMI |
3 |
| Ethernet |
2 |
| USB |
4 x USB 3.0 |
| Audio |
2 (Mic-in, Line-out) |
| DC Jack |
1 |
Internal Connector
| USB |
4 x USB 2.0 |
| COM |
2 x COM (RS-232), 2 x COM (RS-232/422/485) |
| GPIO |
4 x GPI, 4 x GPO |
| TPM |
1 x Header |
| LVDS |
1 |
| VGA |
1 |
| SATA PWR Output |
1 |
| Speaker Header |
1 |
Storage
| SATA |
2 x SATA3 (6.0Gb/s) |
| RAID |
Intel SATA RAID 0/1 |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con) |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
0degC ~ 60degC |
| Storage Temp |
-40deg C ~ 85deg C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
Accessories
| Gift Package |
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020313000AK)
1 x I/O Shield THIN (13G020313020AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK) |
| Bulk Package |
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020313000AK)
1 x I/O Shield THIN (13G020313020AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
