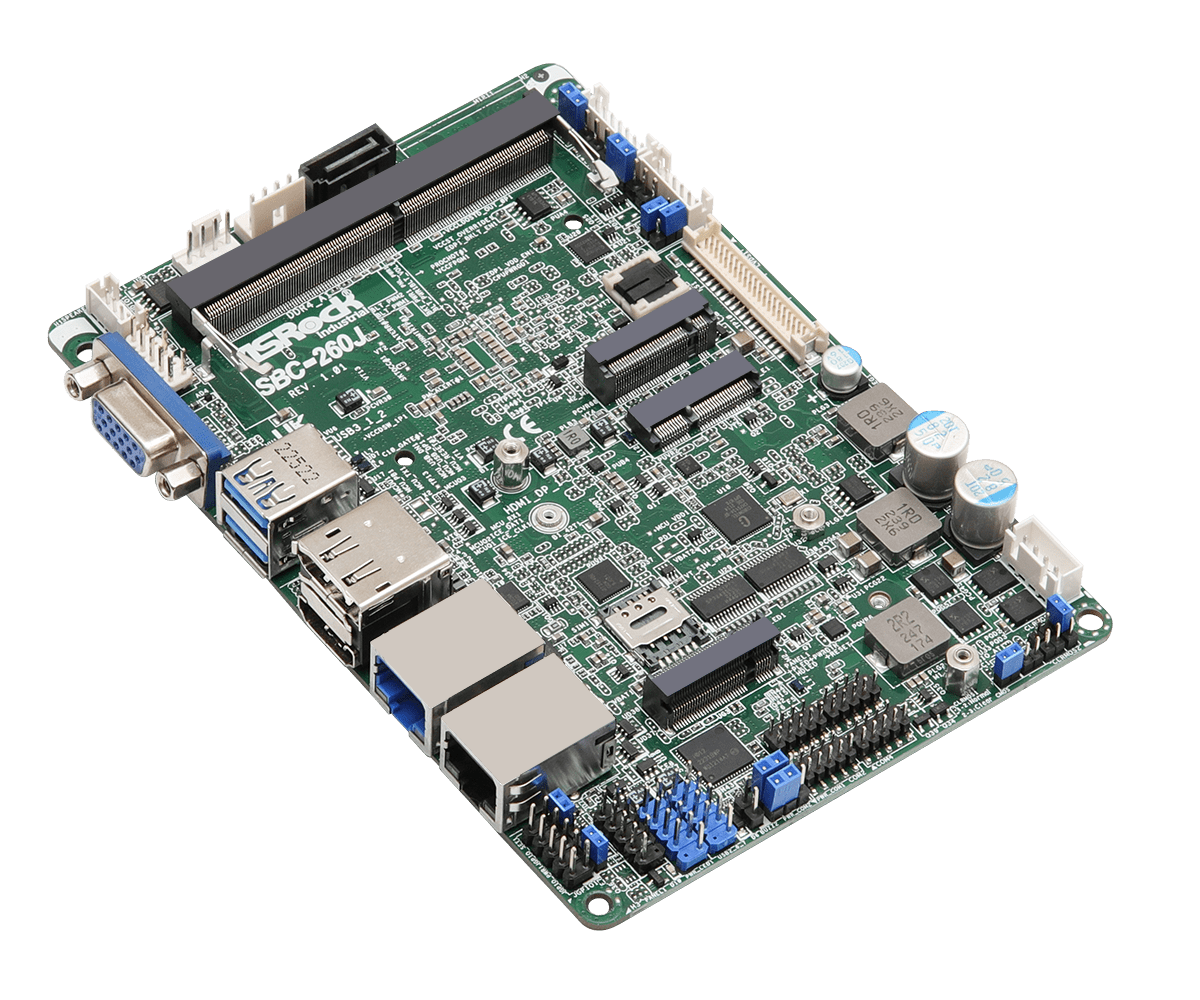

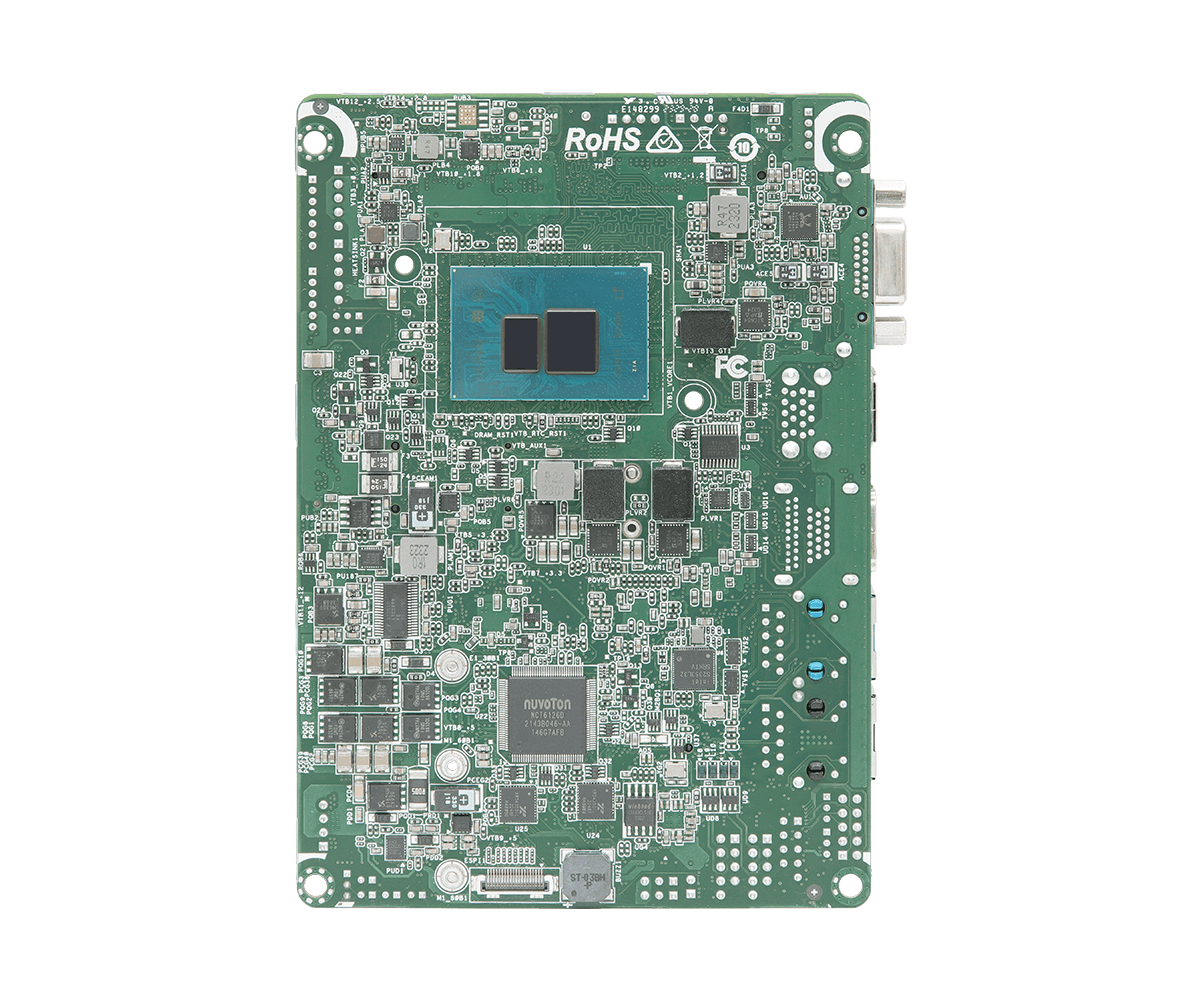

SBC-260J
- Intel Alder Lake-N SoC Processors N97
- 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
- 2 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 1 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA, 1 x LVDS or eDP
- TPM 2.0 onboard IC
- 9~36V DC-In PWR
Processor System
| CPU | Intel Alder Lake-N SoC Processors SBC-260J (N97, QC, Max Speed Up to 3.6GHz, 12W) *For other CPU SKUs request, please contact regional Sales for availability |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4-in x 1.02-in, 14.7 cm x 10.2 cm x 2.60 cm) |
|---|
Memory
| Technology | Single Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 1 x 260-pin SO-DIMM |
Graphics
| Controller | Intel UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | DP 1.4a Max resolution up to 4096 x 2160@60Hz |
| VGA | Max resolution up to 1920 x 1200 |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2/USB 2.0 and SIM for 4G/5G |
|---|---|
| SIM Socket | 1x SIM socket connected to M.2 key B |
Audio
| Interface | Realtek ALC256 HD, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel I226V with 10/100/1000/2500 Mbps LAN2: Intel I210AT with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

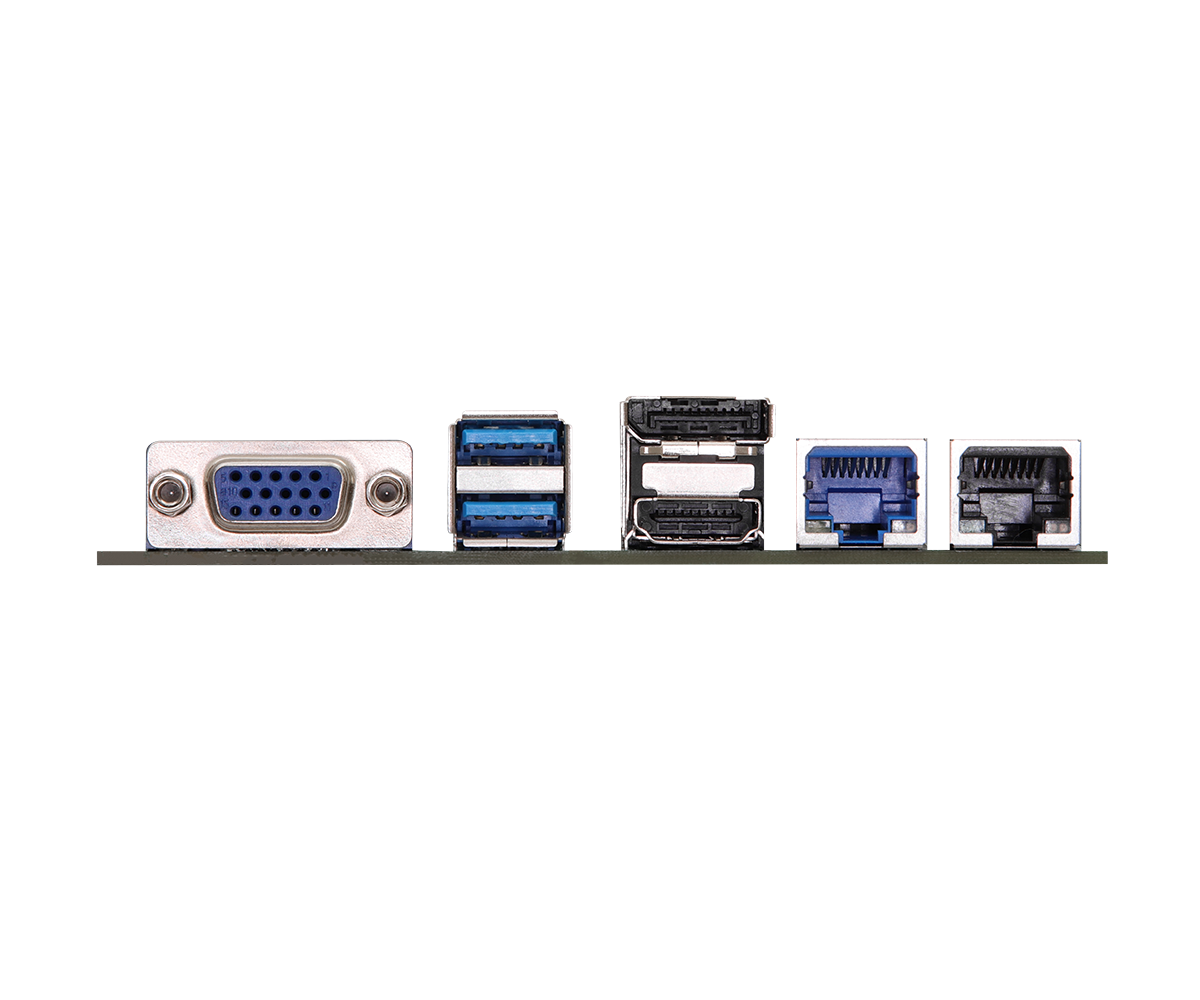

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a |
| VGA | 1 |
| Ethernet | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM3, COM4 (RS-232) COM1, COM2 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| MIPI Camera Header | 1 (Optional) |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe x1 or SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, .255sec |
Power Requirements
| Input PWR | 9~36V DC-In with 4-pin wafer PWR |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20degC ~ 70degC |
|---|---|
| Storage Temp | -40deg C ~ 85deg C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x Heat Sink 147*102.2mm (13G07P016000AK ) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000000340AK) 1 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) |
|---|---|
| Bulk Package | 3 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
