DC Power Pack


230VAC, 1Ph, 50 Hz, the DC power pack provides the different DC output viz:
24VDC/ 14A (O/P varies with Battery Voltage), 48VDC/ 350W and12VDC/50W to run the different loads with a battery backup of minimum 04 hours on full Loads on outputs- 24V/14A (O/P varies with Battery Voltage), 48V/7.3A and 12V/4.2A.The unit is compact and highly efficient.The unit is protected against output overload, output overvoltage, output short circuit and current limit for Loads, unit over temperature and Battery Reverse protections. Cooling is provided through in-built blowers. The output voltages are 27VDC for Battery charging, 24V DC (Varies with Battery Voltage), 48VDC and 12VDC for Load. LED indications are provided for PWR ON (Power ON), Load on Battery, Battery Charging, Battery Reverse polarity, Over temperature, DC OK for each O/P, overload for each O/P & O/P O/V(Over voltage) for each O/P. MCB is provided to switch ON/OFF Input supply.

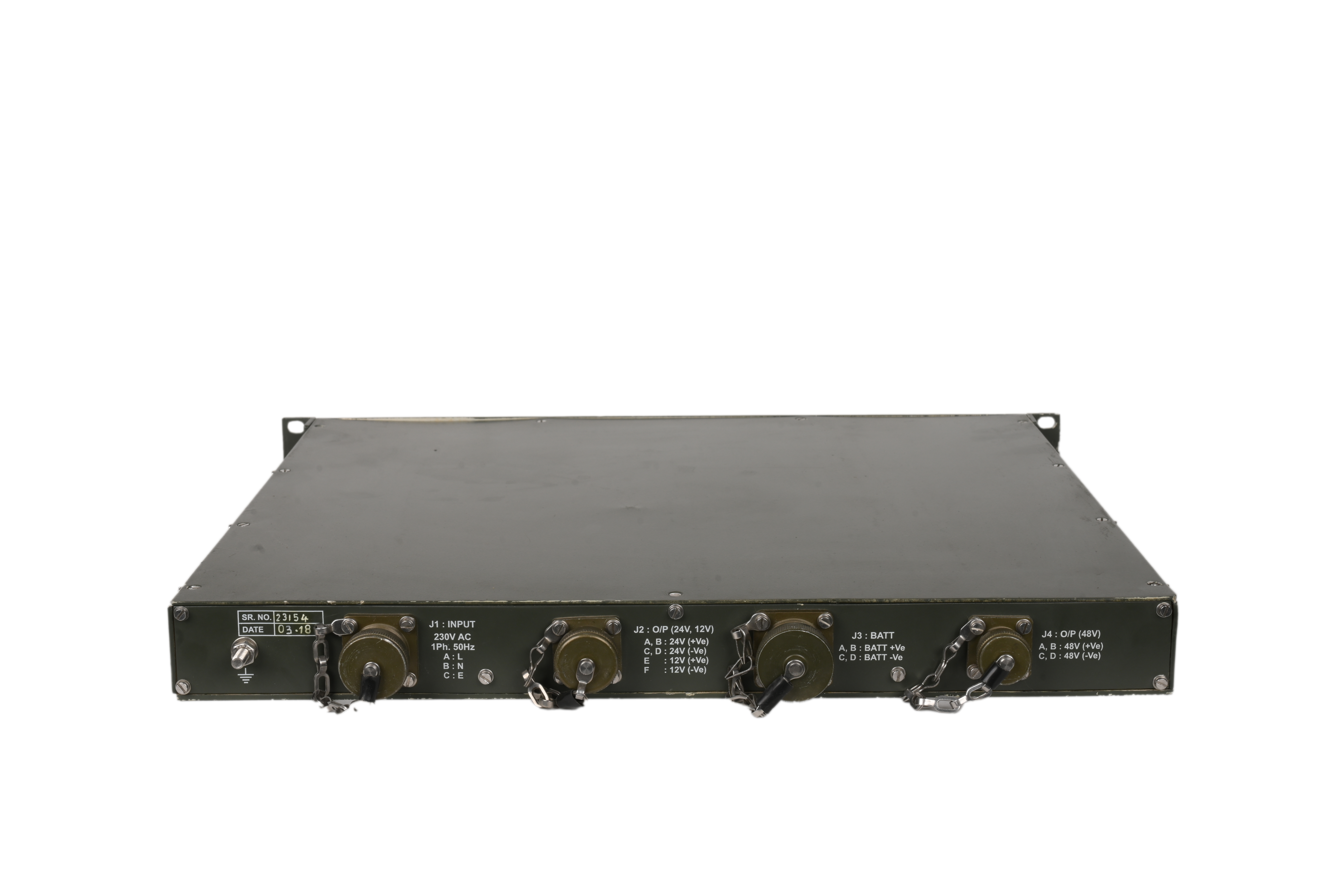

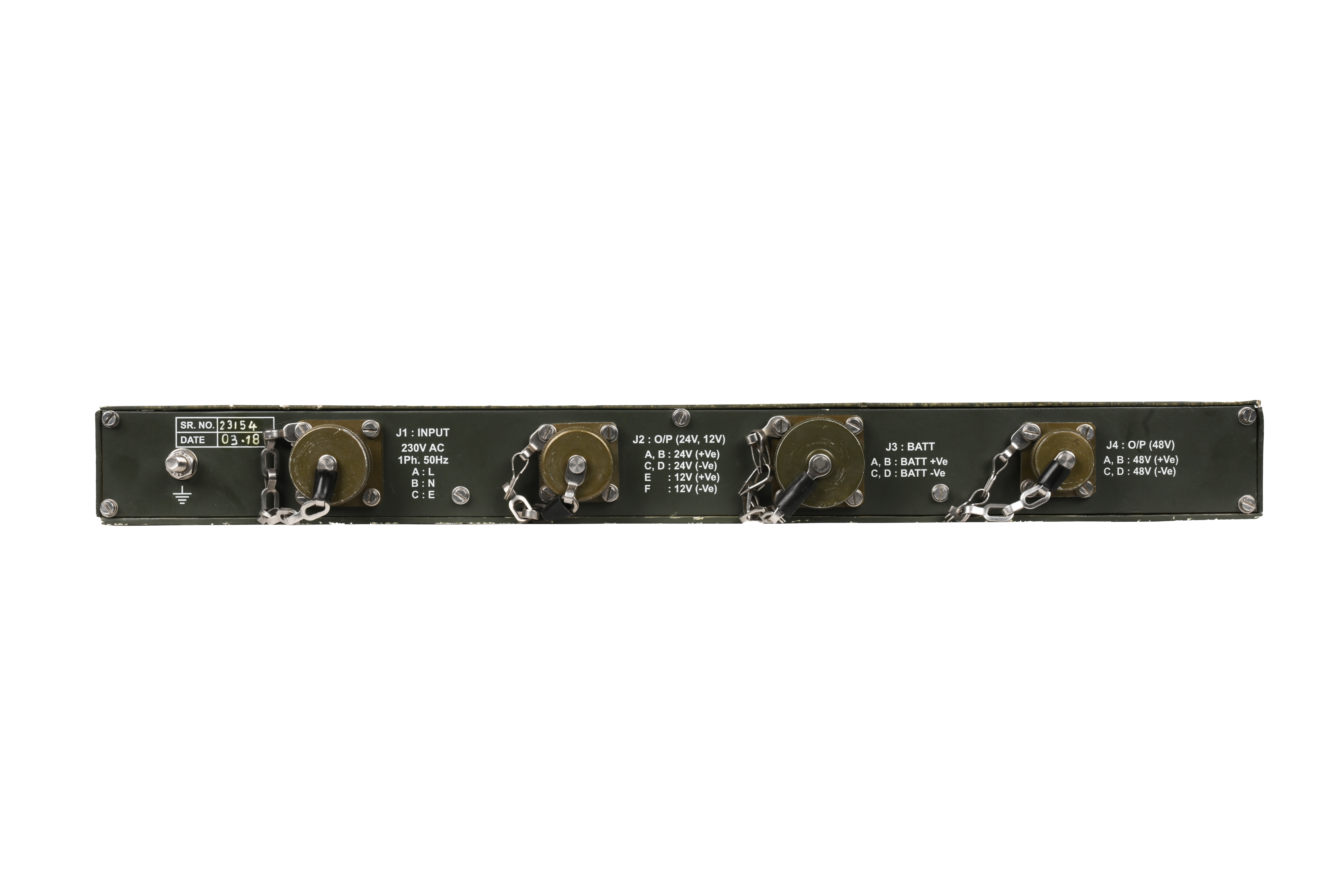

Battery ON/ OFF switch is provided on front panel.Input is provided on a 3-pin MS shell connector. Four nos. of O/P�s viz. 27VDC for Battery charging, 24V DC (Varies with Battery Voltage), 48VDC and 12VDC for Load are provided on three nos. of MS shell connectors. All the four connectors are mounted on rear panel of the unit


Input:230V AC,1Ph, 50Hz
Output: *27VDC, 14A (For Battery Charging)
24VDC, 14A (For Load)-Varies with Battery Voltage

  • 48VDC/350W (For Load)
  • 12VDC/50W (For Load)
